Trough Drain Installation
Effortless Flow: Trough Drain Installation for Seamless Spaces
Achieving a harmonious and functional outdoor space requires careful consideration of various elements, including effective water management. Trough drain installation can prevent water from entering a garage or other doorway and can also be useful in other surface runoff situations. Decorative drain grates can be used offering both functionality and aesthetic appeal. We are the Drainage specialists and we’re here to discuss the ins and outs of trough drain installation and the alternatives. If you are seeking Trough Drain Installation.
Understanding Trough Drain Systems:

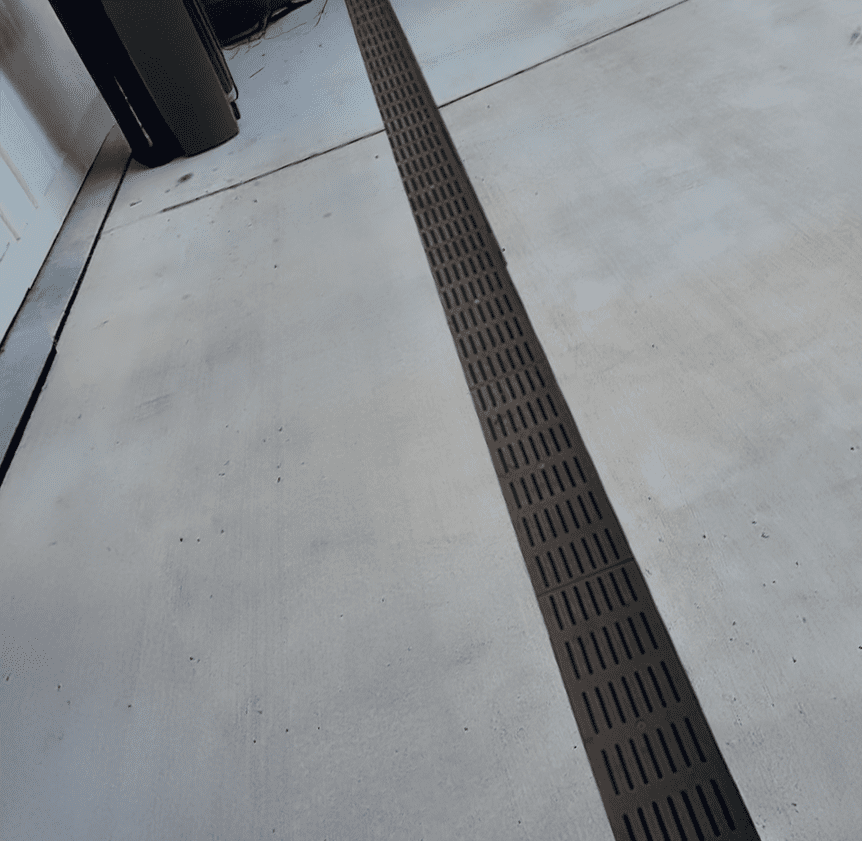

Trough drains, also known as linear drains, channel drains or trench drains, represent an innovative approach to water management in areas where sheet flow along a level plane is a problem. Unlike traditional basin drain installations, these linear systems are long and narrow, installed flush with the floor or ground surface, efficiently collecting and diverting water along their length.
Seamless Integration:
One of the most striking features of trough drains is their seamless integration into spaces. Their low-profile design creates a streamlined appearance, blending effortlessly with the surrounding surfaces, whether they are installed in pool areas, driveways, sidewalks or outdoor landscapes.
Efficient Water Drainage:
Trough drains can offer efficient water drainage by capturing water across their length but they are not all created equal. Many trough drains have a drain in the bottom of them that goes downward into a pipe and others can allow the water to go straight out the end of the trough drain, which is often preferable. Water does not like to make sharp turns, nor does debris. The straighter the water can travel, the better flow can be achieved and clogging can be minimized. Also some trough drains have a 3” drain hole and a fitting made to plug into a 4” pipe. This cuts the capacity of the trough drain in half. It’s important that the discharge hole in the trough drain is as big as the pipe opening and that proper flow calculations are made prior to installation to ensure the right size drain and pipe are being used.
Trough drains can be connected together to achieve a length of trench drain but often the discharge hole is only big enough to accommodate about a 3 or 4’ length worth of drain. In other words you may need a larger PVC pipe to accommodate longer lengths of trough/ trench/ linear drain. This design significantly reduces pooling or standing water, preventing flooding, water invasion into garages or other doorways, potential slip hazards and ensuring swift water evacuation when properly built and installed.
Enhanced Aesthetics:
Beyond functionality, trough drains can contribute to the visual appeal of spaces as they have many styles of decorative caps made from cast iron, stainless steel, bronze and other materials. They can be installed to have a discreet presence that minimizes visual clutter, allowing for uninterrupted design elements while maintaining a sleek and modern aesthetic.
Versatile Applications:
Trough drains find application in various settings. In outdoor spaces, pool areas, walkways or driveways, they can efficiently manage water runoff, preventing water accumulation and potential damage.
Durability and Maintenance:
Properly installed trough drains with high quality materials should last a lifetime with proper maintenance. Their design should facilitate easy cleaning and maintenance, minimizing the accumulation of debris or blockages. Trough drains should feature removable grates or covers, allowing for easy access and thorough cleaning.
Seamless Installation Process:
Professional installation of trough drains ensures precision and efficiency. Ideally, trough drains should be installed during the initial installation of a concrete, paver or stone flatwork and also be installed later. This will generally involve some concrete cutting, pouring a reinforced concrete base to seat the trough drain in and mortaring in the edges.
Concluding opinions
The best trough drain installations stand as a testament to the fusion of functionality and aesthetics in modern water management solutions. Seamless integration, efficient water evacuation and a product that lasts a lifetime are the result of expert trough drain planning and installation. Choosing Drain Designs for your Trough Drain Installation
We will ensure that your project is a success.
Drain Designs would love to serve you for your Trough Drain Installation
We would love to help in any way we can.
Request an Onsite Drainage Assessment
Our drainage systems cost far less than the repairs and depreciation they prevent.
About Free Estimates
We may be able to provide free ballpark verbal pricing over the phone, but we encourage you to have your home or property drainage system assessed by an experienced Drainage Technician. It’s often the water you don’t see that’s attracting pests, as well as causing mold and structural issues.
We want to help you improve your drainage and spot any red flags to prevent or arrest costly problems.
Drainage Improvements & Maintenance Options
For Diagnostic & Design Services, our cost is $90 per hour and generally takes 1 hour for an average home.
NO CHARGE for travel time within our service area.
We Guarantee Your Satisfaction!
Thank you for in advance for contacting us! We look forward to helping you.
It’s All About You!
Our Vision
Our People
Our vision is to preserve and protect our health, economy and environment through proactive, sustainable, innovative drainage solutions.
Our Commitment
Our Promise
To serve our customers and the Greater Good as a fair, honest, caring, ever-improving and teachable team.
History and Experience
Drain Designs, formerly K Squared Masonry, is a franchised operation, owned by Kevin Kondas. Mr. Kondas has specialized in waterproofing, drainage and masonry/structural repair for over 30 years. He decided to focus on drainage and waterproofing after doing years of repair work that better drainage systems could have prevented.
Each franchise location is independently owned by the respective franchise owner. His award-winning masonry company performed the masonry work on projects that have been awarded such honors as Better Homes & Gardens Magazine 2009 Outdoor Improvement Winner and the cover of the Home Builders Association Remodeling Today Magazine, in the Triangles Best Remodelers 2012.
Your Content Goes Here
Our Services
What Can We Help You With Today?
New Installation, Improvements & Maintenance
Our drainage and waterproofing systems are built to last a lifetime – Guaranteed! Drainage changes over time and hidden issues, like mold & undermining of trees or structures, can cause serious damage. We can optimize & maintain your drainage and waterproofing to keep your home and yard healthy… Learn More

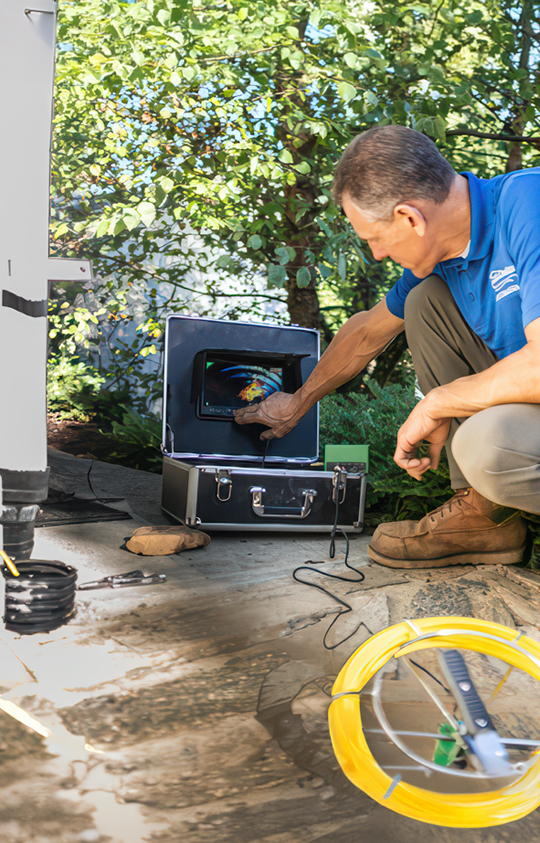

Custom Drainage Diagnostic & Services
Your property drainage is unique. We inspect your downspout drains, foundation drainage, any existing yard / French drain systems, spot red flags and offer a sensible plan to fit your needs & budget. Our expertise is the result of over 3 decades of rainwater problem solving… Learn More

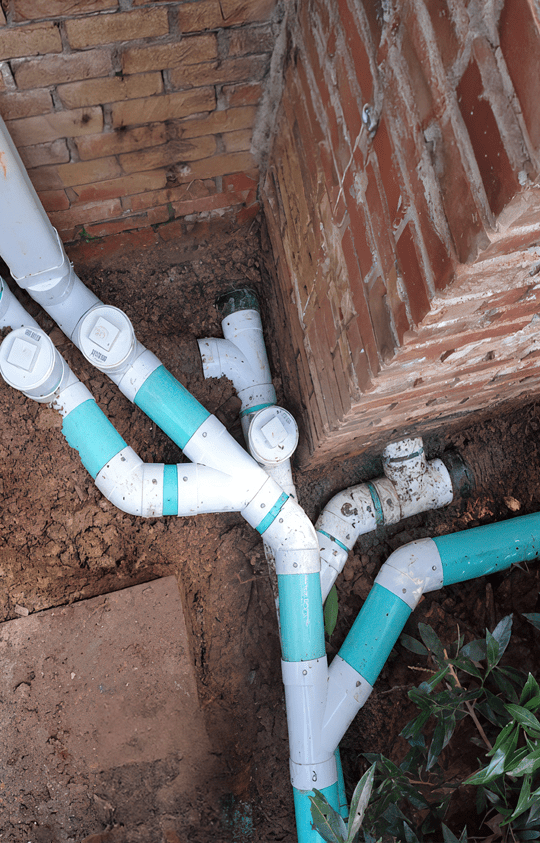

French Drains & Foundation Drainage
Waterproofing depends on good drainage. A proper drainage system can prevent unhealthy conditions & expensive foundation / structural issues. Ask about our American Drains – permanent & far superior to outdated, quick clogging French Drains… Learn More
Custom Drainage Services
Your drainage problem is unique to your home, building or lawn. Your solution is custom designed, and installed to function properly. Our drainage systems cost far less than the repairs and depreciation they prevent… Learn More

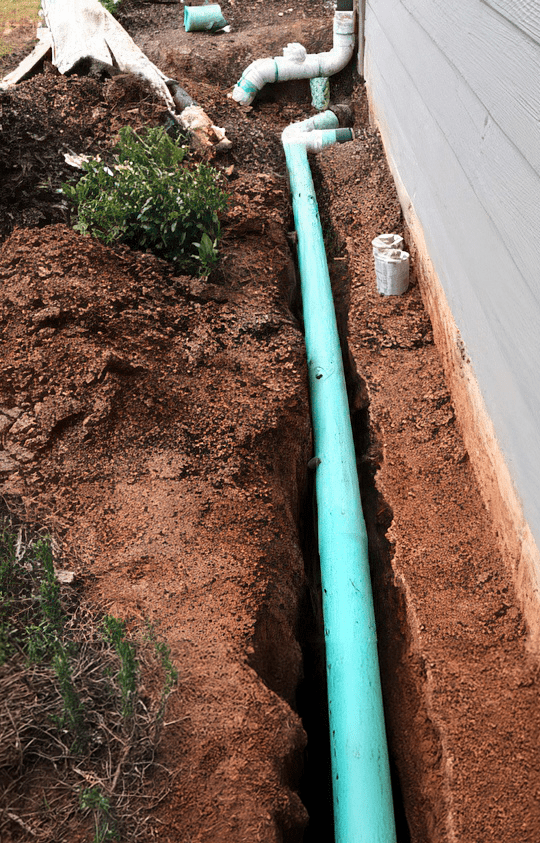

Foundation Damage Prevention
